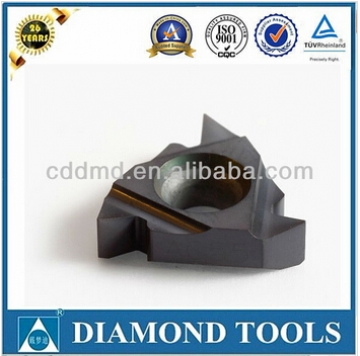

16IR AG55 cnc threading turning inserts pipe threaded insert
| FOB Price | Get Latest Price |
| Minimum Order Quantity: | 10 Piece/Pieces |
| Supply Ability: | 10000 Piece/Pieces per month |
| Port: | Chengdu/shanghai/Guangzhou/Shenzhen |
- Quantity:
Supply Ability: 10000 Piece/Pieces per month
Port: Chengdu/shanghai/Guangzhou/Shenzhen
Detail
16IR AG55 cnc threading turning inserts pipe threaded insert
Unique Advantages
1. Full profile design ensures the high precision of threads
2. Smooth rake face makes the chip removal easier
3. Uniform horning cutting edge ensures low cutting force
4. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the performance
Specification
D
Pitch
Designation
Dimension
mm
TPI
Right Hand
Left Hand
L
X
Y
External
1/4"
0.5~1.5
48~16
11ER A55
11EL A55
11
0.8
0.9
3/8"
0.5~1.5
48~16
16ER A55
16EL A55
16
0.8
0.9
0.5~3.0
48~8
16ER AG55
16EL AG55
1.2
1.7
1.75~3.0
14~8
16ER G55
16EL G55
1.2
1.7
1/2"
3.5~5.0
7~5
22ER N55
22EL N55
22
1.7
2.5
5/8"
5.5~6.0
4.5~4
27ER Q55
27EL Q55
27
2.1
3.1
Internal
1/4"
0.5~1.5
48~16
11IR A55
11IL A55
11
0.8
0.9
3/8"
0.5~1.5
48~16
16IR A55
16IL A55
16
0.8
0.9
0.5~3.0
48~8
16IR AG55
16IL AG55
1.2
1.7
1.75~3.0
14~8
16IR G55
16ILG55
1.2
1.7
1/2"
3.5~5.0
7~5
22IR N55
22IL N55
22
1.7
2.5
5/8"
5.5~6.0
4.5~4
27IR Q55
27IL Q55
27
1.8
2.7
